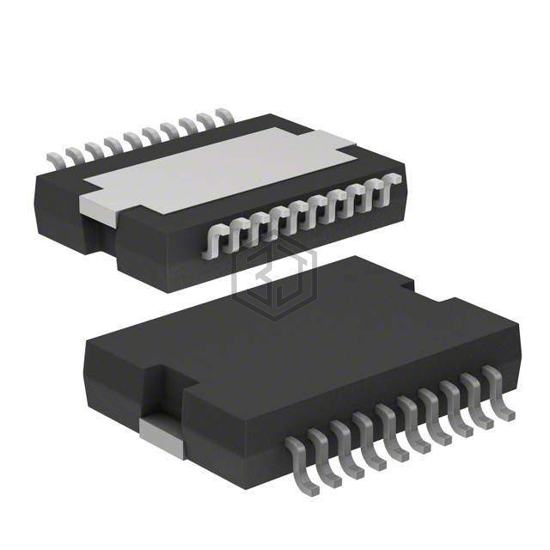

IC MTRDRV BIPLR 4.5-5.5V 20PWRSO
L9958 is a PMIC - Motor Drivers, Controllers manufactured by STMicroelectronics. IC MTRDRV BIPLR 4.5-5.5V 20PWRSO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 20-SOIC (0.433", 11.00mm Width) Exposed Pad.
In Stock: 458
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | SPI |
| Technology | CMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 8.6A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.433", 11.00mm Width) Exposed Pad |
| Supplier Device Package | PowerSO-20 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| L9958SB | STMicroelectronics | IC MTRDRV BIPLR 4.5-5.5V 16PWRSO | 100% | View |
| L9958XPTR | STMicroelectronics | IC MOTOR DRVR BIPOLAR 24POWERSSO | 100% | View |
| L9958SBTR | STMicroelectronics | IC MTRDRV BIPLR 4.5-5.5V 16PWRSO | 100% | View |
| L9958XP | STMicroelectronics | IC MOTOR DRVR BIPOLAR 24POWERSSO | 100% | View |
| L9958TR | STMicroelectronics | IC MTRDRV BIPLR 4.5-5.5V 20PWRSO | 100% | View |
| TLE82092SAAUMA1 | Infineon Technologies | IC MOTOR DRIVER 4.4V-5.25V 20DSO | 98% | View |
Submit your RFQ for L9958 and get a quote within 24 hours.
