IC MOTOR DRIVER BIPLR 36POWERSO

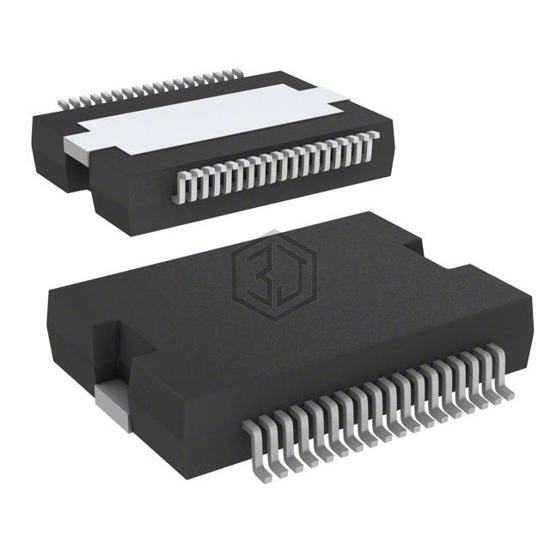

L6258EX is a PMIC - Motor Drivers, Controllers manufactured by STMicroelectronics. IC MOTOR DRIVER BIPLR 36POWERSO. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 36-PowerBSSOP (0.433", 11.00mm Width).
In Stock: 5,727
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | DMOS |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 |
| Applications | General Purpose |
| Current - Output | 1.2A |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 12V ~ 40V |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 36-PowerBSSOP (0.433", 11.00mm Width) |
| Supplier Device Package | PowerSO-36, Bottom Pad |
L6258EX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MP6543CGL-P | Monolithic Power Systems Inc. | 22V, 1.2A, THREE-PHASE BLDC MOTO | 89% | View |
| NCV70521MN003R2G | onsemi | IC MTRDRV BIPLR 4.75-5.25V 32QFP | 88% | View |
| AMIS30521C5212RG | onsemi | IC MTRDRV BIPLR 4.75-5.25V 32QFP | 88% | View |
| MP6508GF-Z | Monolithic Power Systems Inc. | IC MTR DRV BIPLR 2.7-18V 16TSSOP | 86% | View |
| A3988SJPTR-1-T | Allegro MicroSystems | IC MTR DRV BIPOLAR 3-5.5V 48LQFP | 85% | View |
| L9997ND013TR | STMicroelectronics | IC MOTOR DRIVER 7V-16.5V 20SO | 84% | View |
Submit your RFQ for L6258EX and get a quote within 24 hours.
