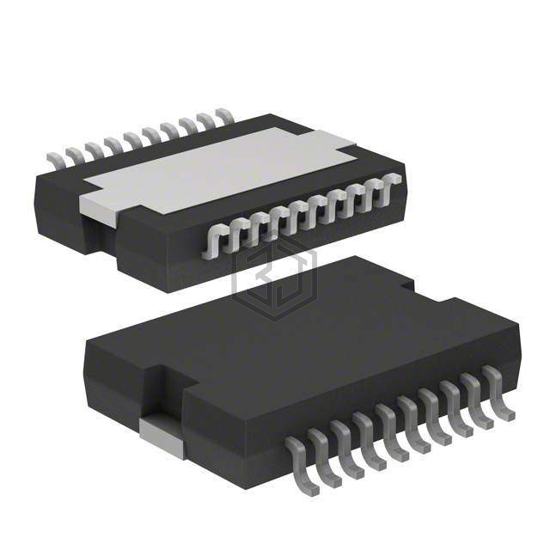

IC REG LINEAR 5V 500MA POWERSO20
L4947PD is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LINEAR 5V 500MA POWERSO20. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 20-SOIC (0.433", 11.00mm Width) Exposed Pad, current - supply (max) 180 mA.
In Stock: 7,973
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.75V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 13 mA |
| Current - Supply (Max) | 180 mA |
| PSRR | 60dB (120Hz) |
| Control Features | Reset |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.433", 11.00mm Width) Exposed Pad |
| Supplier Device Package | PowerSO-20 |
L4947PD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCV8508CPD501R2G | onsemi | IC REG LINEAR LDO 5V SOIC | 66% | View |
| LT1529IQ-5#PBF | Analog Devices Inc. | IC REG LINEAR 5V 3A 5DDPAK | 56% | View |
| LT1529IQ-5#TRPBF | Analog Devices Inc. | IC REG LINEAR 5V 3A 5DDPAK | 56% | View |
| LT1764EFE-3.3#PBF | Analog Devices Inc. | IC REG LINEAR 3.3V 3A 16TSSOP | 55% | View |
| LT1764AEFE-3.3#PBF | Analog Devices Inc. | IC REG LINEAR 3.3V 3A 16TSSOP | 53% | View |
| LT1764AEQ-3.3#TRPBF | Analog Devices Inc. | IC REG LINEAR 3.3V 3A 5DDPAK | 53% | View |
