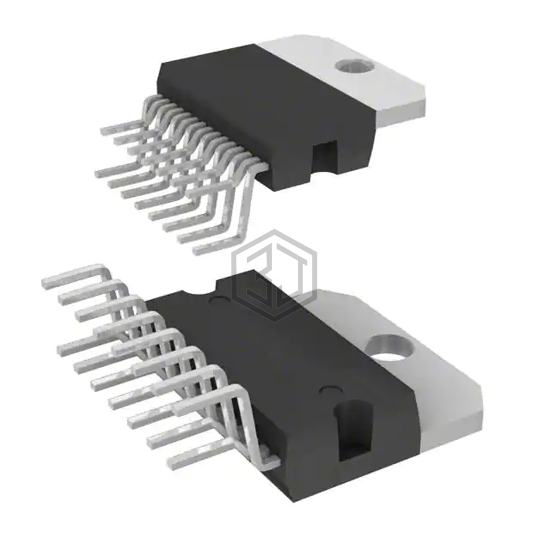

IC REG LIN POS ADJ 15MULTIWATT
L4909 is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LIN POS ADJ 15MULTIWATT. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case Multiwatt-15 (Vertical, Bent and Staggered Leads), current - supply (max) 29 mA.
In Stock: 3,232
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 3 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | 12V |
| Voltage Dropout (Max) | 2.2V @ 500mA, 2.2V @ 500mA, 2.2V @ 500mA |
| Current - Output | 1.2A, 1.2A, 1.2A |
| Current - Quiescent (Iq) | 11 mA |
| Current - Supply (Max) | 29 mA |
| PSRR | 60dB (120Hz ~ 1kHz) |
| Control Features | Enable, Trigger |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | Multiwatt-15 (Vertical, Bent and Staggered Leads) |
| Supplier Device Package | 15-Multiwatt |
L4909 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LT3080ET#PBF | Analog Devices Inc. | IC REG LIN POS ADJ 1.1A TO220-5 | 71% | View |
| LT3080IT#PBF | Analog Devices Inc. | IC REG LIN POS ADJ 1.1A TO220-5 | 71% | View |
| LT3080ET#31PBF | Analog Devices Inc. | IC REG LIN POS ADJ 1.1A TO220-5 | 71% | View |
| LM2941T/LF03 | Texas Instruments | IC REG LINEAR POS ADJ 1A TO220-5 | 64% | View |
| LM2941CT/NOPB | Texas Instruments | IC REG LINEAR POS ADJ 1A TO220-5 | 64% | View |
| LM2941T/NOPB | Texas Instruments | IC REG LINEAR POS ADJ 1A TO220-5 | 64% | View |
Submit your RFQ for L4909 and get a quote within 24 hours.
