FILTER LC(PI) 12NH/18PF ESD SMD

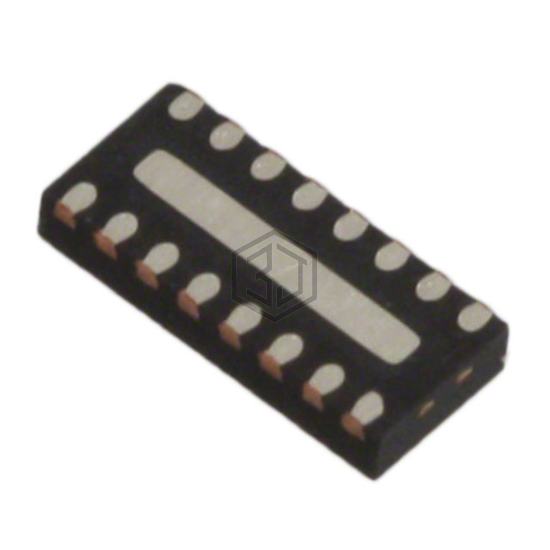

EMIF08-LCD04M16 is a EMI/RFI Filters (LC, RC Networks) manufactured by STMicroelectronics. FILTER LC(PI) 12NH/18PF ESD SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-UFDFN Exposed Pad, size / dimension 0.130" L x 0.053" W (3.30mm x 1.35mm).
In Stock: 25,106
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Number of Channels | 8 |
| Center / Cutoff Frequency | 400MHz (Cutoff) |
| Attenuation Value | -35dB @ 900MHz ~ 2GHz |
| Resistance - Channel (Ohms) | 12.5 |
| Current | - |
| Values | L = 12nH, C = 18pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFDFN Exposed Pad |
| Size / Dimension | 0.130" L x 0.053" W (3.30mm x 1.35mm) |
| Height | 0.022" (0.55mm) |
Submit your RFQ for EMIF08-LCD04M16 and get a quote within 24 hours.
