FILTER RC(PI) 170 OHM/14PF SMD

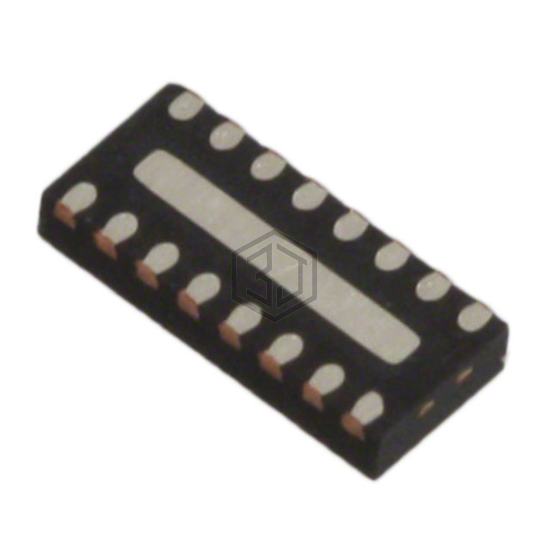

EMIF08-1502M16 is a EMI/RFI Filters (LC, RC Networks) manufactured by STMicroelectronics. FILTER RC(PI) 170 OHM/14PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-UFDFN Exposed Pad, current 10 mA.
In Stock: 1,032
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 8 |
| Center / Cutoff Frequency | 300MHz (Cutoff) |
| Attenuation Value | 30dB @ 900MHz ~ 1.8GHz |
| Resistance - Channel (Ohms) | 170 |
| Current | 10 mA |
| Values | R = 170Ohms, C = 14pF (Total) |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFDFN Exposed Pad |
| Size / Dimension | 0.130" L x 0.059" W (3.30mm x 1.50mm) |
| Height | 0.024" (0.60mm) |
Submit your RFQ for EMIF08-1502M16 and get a quote within 24 hours.
