FILTER RC(PI) 45 OHM/20PF SMD

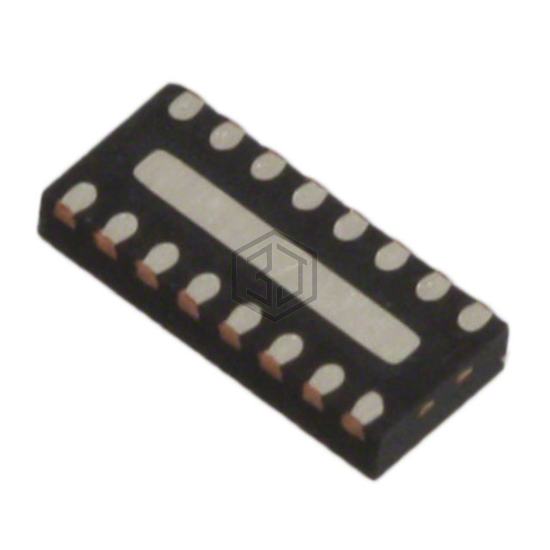

EMIF06-MSD02N16 is a EMI/RFI Filters (LC, RC Networks) manufactured by STMicroelectronics. FILTER RC(PI) 45 OHM/20PF SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C, package / case 16-UFDFN Exposed Pad, size / dimension 0.138" L x 0.047" W (3.50mm x 1.20mm).
In Stock: 4,981
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 6 |
| Center / Cutoff Frequency | - |
| Attenuation Value | - |
| Resistance - Channel (Ohms) | 45 |
| Current | - |
| Values | R = 45Ohms, C = 20pF (Total) |
| ESD Protection | Yes |
| Operating Temperature | -30°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFDFN Exposed Pad |
| Size / Dimension | 0.138" L x 0.047" W (3.50mm x 1.20mm) |
| Height | 0.022" (0.55mm) |
Submit your RFQ for EMIF06-MSD02N16 and get a quote within 24 hours.
