3J LIMITED

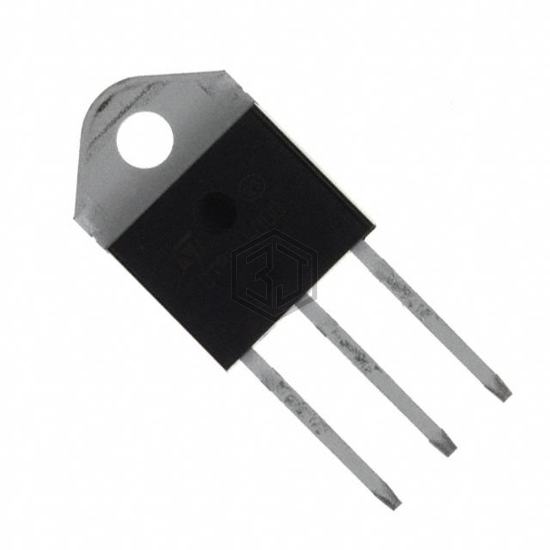

BTW68-200RG
SCR 200V 30A TOP3
BTW68-200RG is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 200V 30A TOP3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TOP-3.
In Stock: 506
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Voltage - Off State | 200 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Voltage - On State (Vtm) (Max) | 2.1 V |
| Current - On State (It (AV)) (Max) | 19 A |
| Current - On State (It (RMS)) (Max) | 30 A |
| Current - Hold (Ih) (Max) | 75 mA |
| Current - Off State (Max) | 20 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 420A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TOP-3 |
| Supplier Device Package | TOP3 |
Frequently Asked Questions
BTW68-200RG is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 200V 30A TOP3
The mounting type of BTW68-200RG is Through Hole.
The operating temperature range of BTW68-200RG is -40°C ~ 125°C.
The package type of BTW68-200RG is TOP-3.
Yes, BTW68-200RG is listed as Obsolete. Consider requesting a quote for alternative parts.
