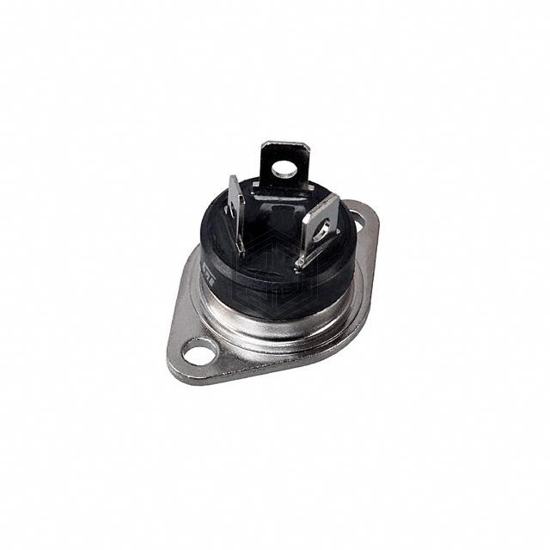

BTW67-1000
SCR 1KV 50A RD91
BTW67-1000 is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 1KV 50A RD91. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case RD-91.
In Stock: 1,581
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 1 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Current - Gate Trigger (Igt) (Max) | 80 mA |
| Voltage - On State (Vtm) (Max) | 1.9 V |
| Current - On State (It (AV)) (Max) | 32 A |
| Current - On State (It (RMS)) (Max) | 50 A |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Off State (Max) | 10 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 580A, 610A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Chassis Mount |
| Package / Case | RD-91 |
| Supplier Device Package | RD91 |
Frequently Asked Questions
BTW67-1000 is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 1KV 50A RD91
The mounting type of BTW67-1000 is Chassis Mount.
The operating temperature range of BTW67-1000 is -40°C ~ 125°C.
The package type of BTW67-1000 is RD-91.
