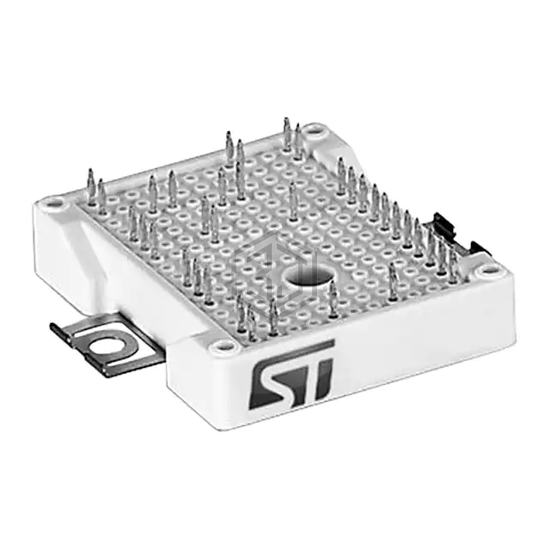

IGBT MOD 1200V 75A ACEPACK2
A2P75S12M3 is a Transistors - IGBTs - Modules manufactured by STMicroelectronics. IGBT MOD 1200V 75A ACEPACK2. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 75 A.
In Stock: 6,178
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 75 A |
| Power - Max | 454.5 W |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 75A |
| Current - Collector Cutoff (Max) | 100 µA |
| Input Capacitance (Cies) @ Vce | 4.7 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | ACEPACK™ 2 |
Submit your RFQ for A2P75S12M3 and get a quote within 24 hours.
