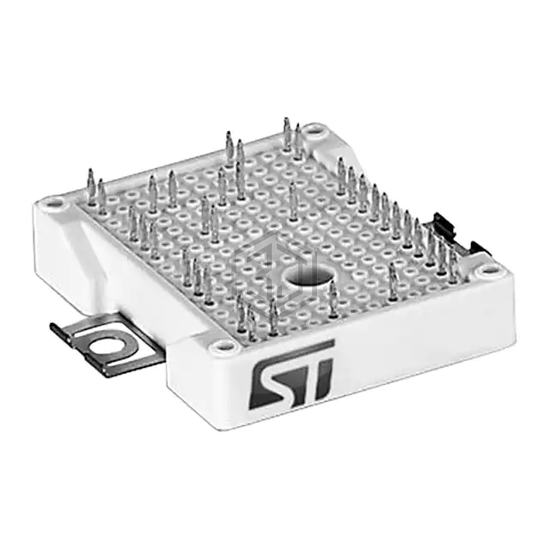

IGBT MOD 1200V 35A 250W ACEPACK2
A2C35S12M3-F is a Transistors - IGBTs - Modules manufactured by STMicroelectronics. IGBT MOD 1200V 35A 250W ACEPACK2. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 35 A.
In Stock: 4,028
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Three Phase Inverter with Brake |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 35 A |
| Power - Max | 250 W |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 35A |
| Current - Collector Cutoff (Max) | 100 µA |
| Input Capacitance (Cies) @ Vce | 2.154 nF @ 25 V |
| Input | Three Phase Bridge Rectifier |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | ACEPACK™ 2 |
Submit your RFQ for A2C35S12M3-F and get a quote within 24 hours.
