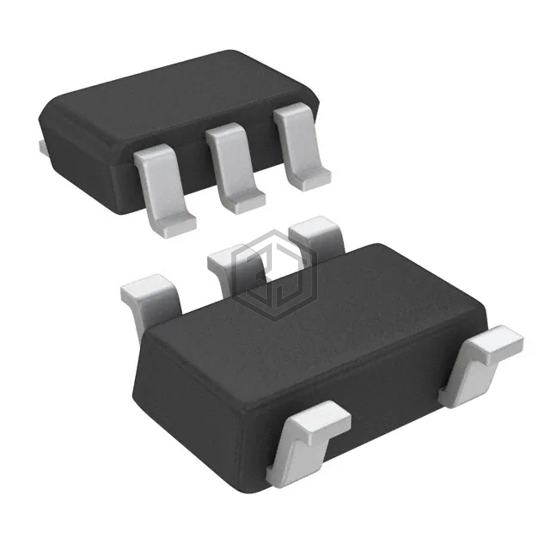

IC INVERTER 1CH 1-INP SOT23-5
74LX1G14STR is a Logic - Gates and Inverters manufactured by STMicroelectronics. IC INVERTER 1CH 1-INP SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case SC-74A, SOT-753.
In Stock: 2,156
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.39V ~ 1.87V |
| Logic Level - High | 1.16V ~ 3.33V |
| Max Propagation Delay @ V, Max CL | 6.2ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
74LX1G14STR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G14MDCKREP | Texas Instruments | IC INVERTER 1CH 1-INP SOT23-5 | 93% | View |
| 74LX1G04STR | STMicroelectronics | IC INVERTER 1CH 1-INP SOT23-5 | 92% | View |
| 74LX1G04CTR | STMicroelectronics | IC INVERTER 1CH 1-INP SOT323-5 | 92% | View |
| SN74LVC1G04MDBVREP | Texas Instruments | IC INVERTER 1CH 1-INP SOT23-5 | 89% | View |
| NL17SZ14DFT2 | onsemi | IC INVERTER SGL SCHMITT SOT353 | 84% | View |
| NLX2G04AMUTCG | onsemi | IC INVERTER 2CH 2-INP 6UDFN | 66% | View |
Submit your RFQ for 74LX1G14STR and get a quote within 24 hours.
