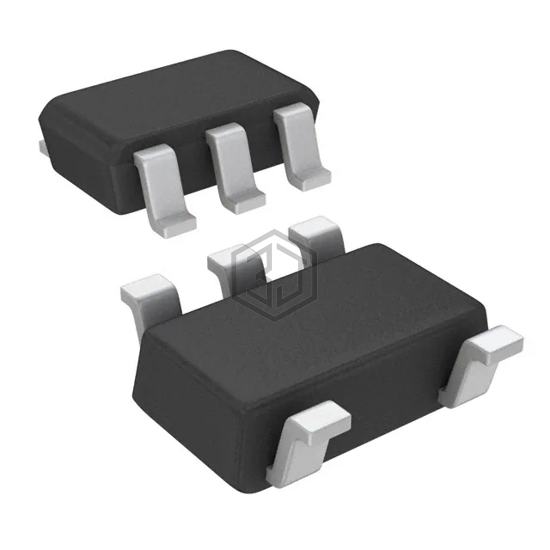

IC GATE NAND 1CH 2-INP SOT23-5
74LX1G132STR is a Logic - Gates and Inverters manufactured by STMicroelectronics. IC GATE NAND 1CH 2-INP SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case SC-74A, SOT-753.
In Stock: 8,821
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.39V ~ 1.87V |
| Logic Level - High | 1.16V ~ 3.33V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
74LX1G132STR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LX1G00CTR | STMicroelectronics | IC GATE NAND 1CH 2-INP SOT323-5 | 98% | View |
| 74LX1G00STR | STMicroelectronics | IC GATE NAND 1CH 2-INP SOT23-5 | 98% | View |
| SN74LVC1G00MDCKREP | Texas Instruments | IC GATE NAND 1CH 2-INP SC70-5 | 94% | View |
| NL17SZ00XV5T2G | onsemi | IC GATE NAND 1CH 2-INP SOT553 | 85% | View |
| NL27WZ00US | onsemi | IC GATE NAND 2CH 2-INP US8 | 76% | View |
| NLV27WZ00USG | onsemi | IC GATE NAND 2CH 1-INP US8 | 70% | View |
Submit your RFQ for 74LX1G132STR and get a quote within 24 hours.
