CONN RCPT MALE 8POS GOLD IDC

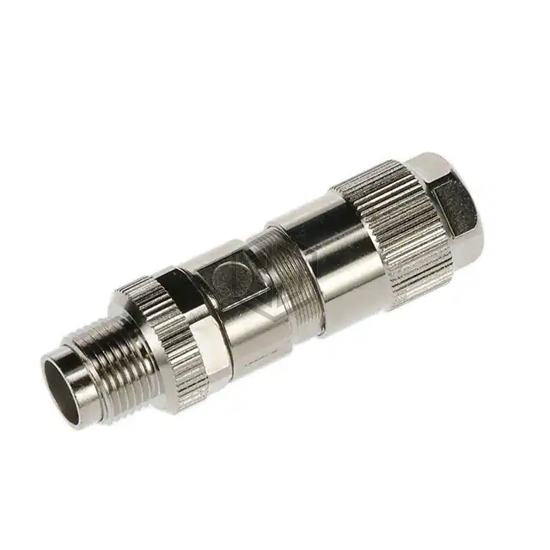

SS-12400-001 is a Circular Connectors manufactured by Stewart Connector. CONN RCPT MALE 8POS GOLD IDC. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 90°C, voltage rating 48V, color Silver.
In Stock: 411
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 8 |
| Shell Size - Insert | M12-8 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | IDC |
| Fastening Type | Threaded |
| Orientation | X |
| Primary Material | Metal |
| Shell Material | Copper Zinc Alloy |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Shielded |
| Current Rating (Amps) | 0.5A per Contact |
| Voltage Rating | 48V |
| Cable Opening | 0.268" ~ 0.354" (6.80mm ~ 9.00mm) |
| Operating Temperature | -40°C ~ 90°C |
Submit your RFQ for SS-12400-001 and get a quote within 24 hours.
