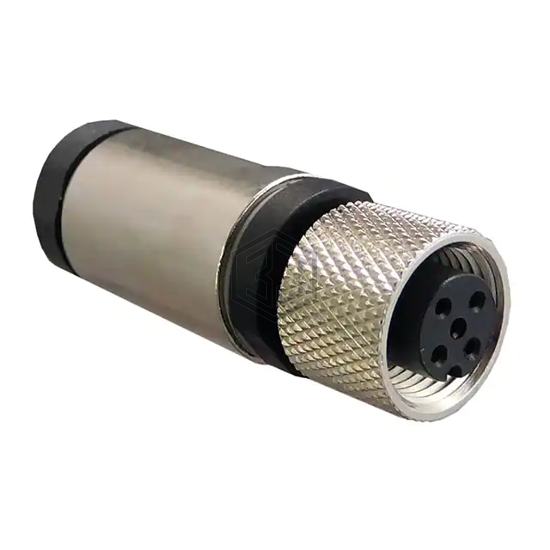

CONN PLUG FMALE 5P GOLD SLDR CUP
SS-12000-020 is a Circular Connectors manufactured by Stewart Connector. CONN PLUG FMALE 5P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -20°C ~ 85°C, color Silver, current rating (amps) 4A.
In Stock: 366
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 5 |
| Shell Size - Insert | M12-5 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Copper Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Coupling Nut |
| Shielding | Shielded |
| Current Rating (Amps) | 4A |
| Voltage Rating | - |
| Cable Opening | 0.236" ~ 0.256" (6.00mm ~ 6.50mm) |
| Operating Temperature | -20°C ~ 85°C |
Submit your RFQ for SS-12000-020 and get a quote within 24 hours.
