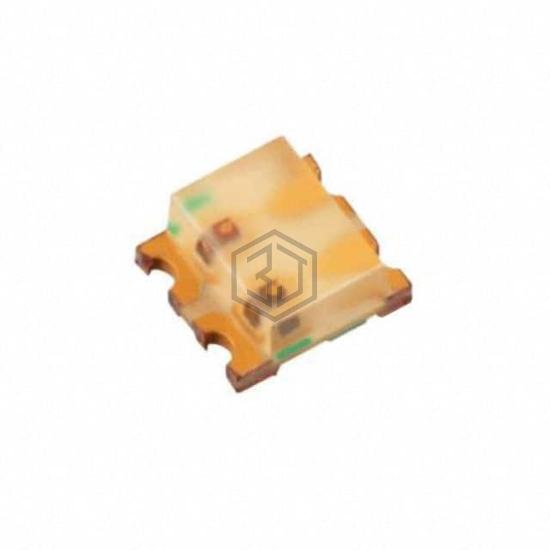

LED RED/YELLOW-GREEN DIFFUSED
FRYPY1211C-0005-TR is a LED Indication - Discrete manufactured by Stanley Electric Co. LED RED/YELLOW-GREEN DIFFUSED. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.85V Red, 1.95V Yellow-Green, package / case 0606 (1616 Metric), color Red, Yellow-Green.
In Stock: 25,590
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Yellow-Green |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 30mcd Red, 12mcd Yellow-Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.50mm x 1.20mm |
| Voltage - Forward (Vf) (Typ) | 1.85V Red, 1.95V Yellow-Green |
| Current - Test | 5mA Red, 5mA Yellow-Green |
| Viewing Angle | 115°, 140° Red, 115°, 140° Yellow-Green |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 626nm Red, 570nm Yellow-Green |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Height (Max) | 0.80mm |
Submit your RFQ for FRYPY1211C-0005-TR and get a quote within 24 hours.
