LED GREEN/RED DIFFUSED SMD

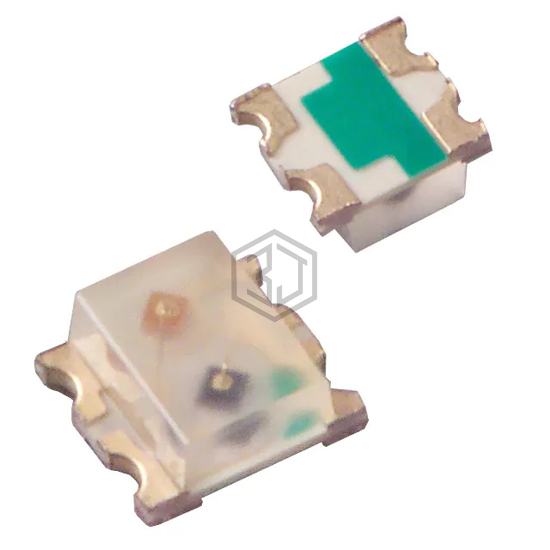

BRPG1211C-TR is a LED Indication - Discrete manufactured by Stanley Electric Co. LED GREEN/RED DIFFUSED SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Green, 1.7V Red, package / case 0606 (1616 Metric), color Green, Red.
In Stock: 128,112
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 6.4mcd Green, 11.7mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.50mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.7V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 168°, 139° Green, 150°, 140°, Red |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 567nm Green, 647nm Red |
| Wavelength - Peak | 560nm Green, 660nm Red |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Height (Max) | 0.80mm |
Submit your RFQ for BRPG1211C-TR and get a quote within 24 hours.
