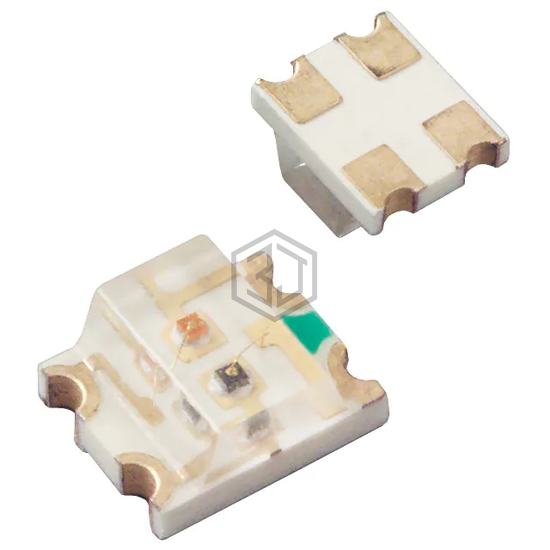

LED GREEN/RED CLEAR SMD
BRPG1204W-TR is a LED Indication - Discrete manufactured by Stanley Electric Co. LED GREEN/RED CLEAR SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Green, 1.7V Red, package / case 4-SMD, No Lead, color Green, Red.
In Stock: 66,389
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 12mcd Green, 33.6mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.80mm x 2.50mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.7V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 100°, 88° Green, 80°, 80° Red |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 567nm Green, 647nm Red |
| Wavelength - Peak | 560nm Green, 660nm Red |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | SMD |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Height (Max) | 1.90mm |
