LED GREEN/YELLOW DIFF SMD R/A

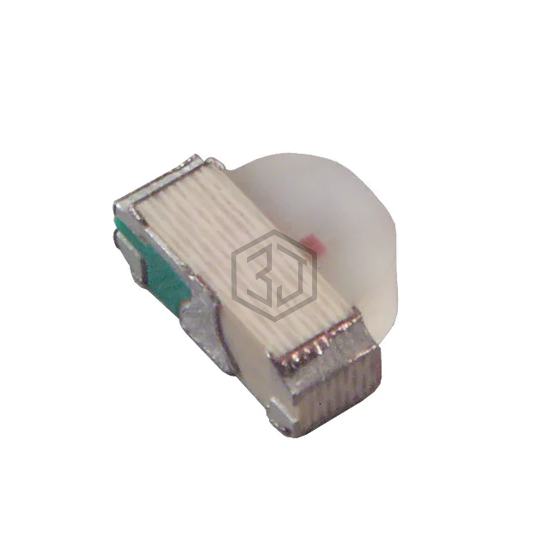

AYPG1211F-TR is a LED Indication - Discrete manufactured by Stanley Electric Co. LED GREEN/YELLOW DIFF SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 2.1V Green, 2.2V Yellow, package / case 2-SMD, No Lead, color Green, Yellow.
In Stock: 43,350
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Yellow |
| Configuration | Common Anode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 5.2mcd Green, 3mcd Yellow |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.2V Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 150°, 140° Green, 150°, 140° Yellow |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 567nm Green, 590nm Yellow |
| Wavelength - Peak | 560nm Green, 580nm Yellow |
| Features | - |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | - |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Height (Max) | 1.15mm |
Submit your RFQ for AYPG1211F-TR and get a quote within 24 hours.
