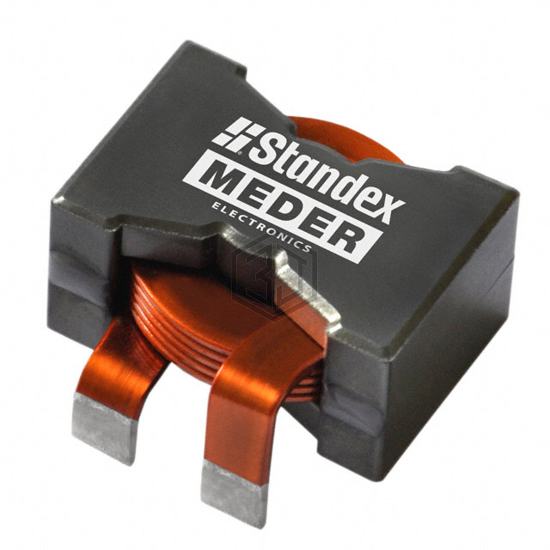

FIXED IND 3.3UH 70A 1.1 MOHM TH
PQ3218-3R3-70-T is a Fixed Inductors manufactured by Standex-Meder Electronics. FIXED IND 3.3UH 70A 1.1 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 125°C, package / case Nonstandard, current rating (amps) 70 A.
In Stock: 2,618
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Planar |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | - |
| Current Rating (Amps) | 70 A |
| Current - Saturation (Isat) | 80A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.1mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -30°C ~ 125°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.260" L x 0.886" W (32.00mm x 22.50mm) |
| Height - Seated (Max) | 0.728" (18.50mm) |
Submit your RFQ for PQ3218-3R3-70-T and get a quote within 24 hours.
