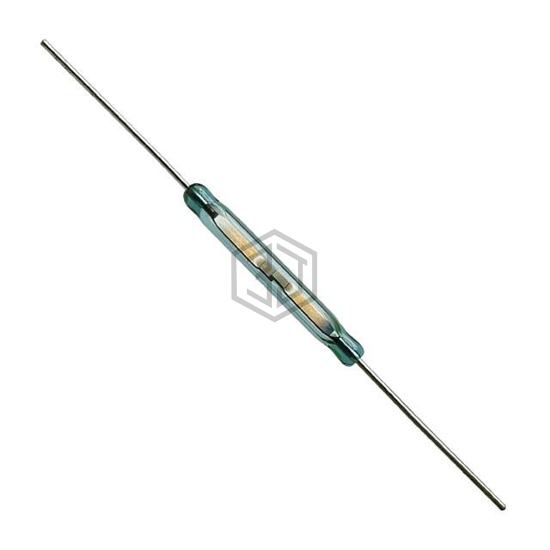

SWITCH REED SPST-NO 700MA 150V
ORD 2210/10-20 AT is a Magnetic, Reed Switches manufactured by Standex-Meder Electronics. SWITCH REED SPST-NO 700MA 150V. Key specifications: mounting type Through Hole, termination style Axial, power - rated 50W, capacitance 0.5 pF.
In Stock: 2,957
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Glass Body Reed |
| Circuit | SPST-NO |
| Operate Range | 10 ~ 20AT |
| Release Range | - |
| Current - Switching | 700mA (AC), 1A (DC) |
| Voltage - Switching AC | 150 V |
| Voltage - Switching DC | 200 V |
| Power - Rated | 50W |
| Operate Time | 0.6 ms |
| Release Time | 0.05 ms |
| Mounting Type | Through Hole |
| Termination Style | Axial |
| Length - Overall | 2.181" (55.40mm) |
| Size - Body | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) |
| Height Above Board | - |
| Operating Temperature | - |
| Capacitance | 0.5 pF |
| Current - Carry | 2.5A (AC/DC) |
Submit your RFQ for ORD 2210/10-20 AT and get a quote within 24 hours.
