SWITCH REED SPST-NO 0.1MA 3V

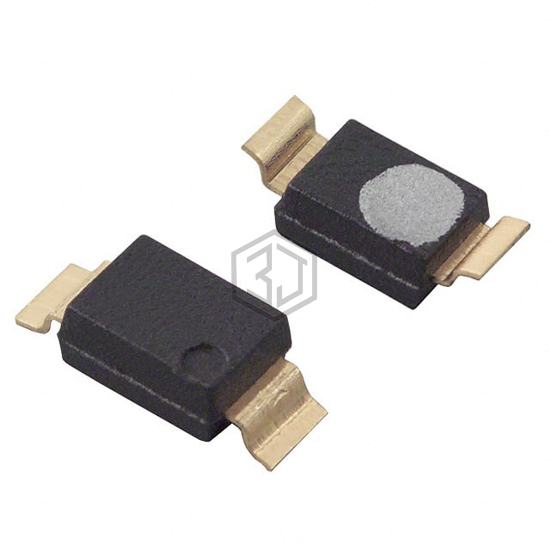

MMS-B-2 is a Magnetic, Reed Switches manufactured by Standex-Meder Electronics. SWITCH REED SPST-NO 0.1MA 3V. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 100°C, termination style Gull Wing, power - rated 0.3mW.
In Stock: 5,713
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 1.8 ~ 4mT |
| Release Range | 0.5 ~ 3.2mT |
| Current - Switching | 0.1mA (AC/DC) |
| Voltage - Switching AC | 3 V |
| Voltage - Switching DC | 3 V |
| Power - Rated | 0.3mW |
| Operate Time | 0.1 ms |
| Release Time | 0.05 ms |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Length - Overall | 0.189" (4.80mm) |
| Size - Body | 0.110" L x 0.081" W x 0.049" H (2.80mm x 2.05mm x 1.25mm) |
| Height Above Board | 0.053" (1.35mm) |
| Operating Temperature | -20°C ~ 100°C |
| Capacitance | 0.2 pF |
| Current - Carry | 0.1mA (AC/DC) |
Submit your RFQ for MMS-B-2 and get a quote within 24 hours.
