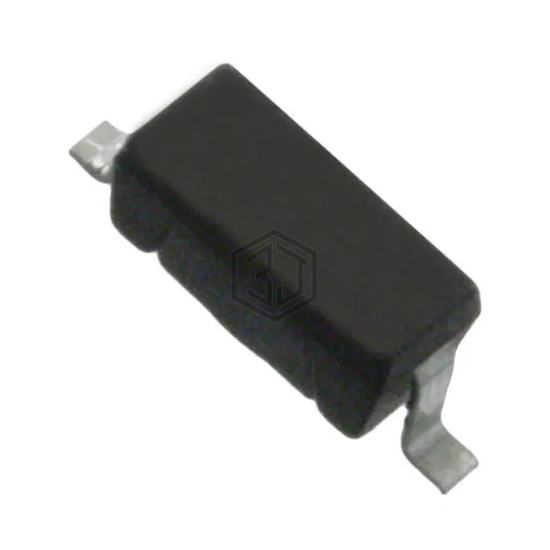

MK24-B-2-OE - Standex-Meder Electronics - Magnetic, Reed Switches

MK24-B-2-OE

Standex-Meder Electronics

SWITCH REED SPST-NC 300MA 30V

MK24-B-2-OE is a Magnetic, Reed Switches manufactured by Standex-Meder Electronics. SWITCH REED SPST-NC 300MA 30V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 115°C, termination style Gull Wing, power - rated 3W.

In Stock: 9,149

Product Attributes

AttributeValue
Product StatusActive
TypeMolded Body Reed
CircuitSPST-NC
Operate Range20 ~ 40AT
Release Range10 ~ 35AT
Current - Switching300mA (AC/DC)
Voltage - Switching AC30 V
Voltage - Switching DC30 V
Power - Rated3W
Operate Time0.25 ms
Release Time0.15 ms
Mounting TypeSurface Mount
Termination StyleGull Wing
Length - Overall0.283" (7.20mm)
Size - Body0.197" L x 0.087" W x 0.102" H (5.00mm x 2.20mm x 2.60mm)
Height Above Board0.102" (2.60mm)
Operating Temperature-40°C ~ 115°C
Capacitance0.1 pF
Current - Carry500mA (AC/DC)

Frequently Asked Questions

MK24-B-2-OE is a Magnetic, Reed Switches manufactured by Standex-Meder Electronics. SWITCH REED SPST-NC 300MA 30V

The mounting type of MK24-B-2-OE is Surface Mount.

The operating temperature range of MK24-B-2-OE is -40°C ~ 115°C.

The termination type of MK24-B-2-OE is Gull Wing.

The capacitance of MK24-B-2-OE is 0.1 pF.
