SWITCH REED SPST-NO 100MA 30V

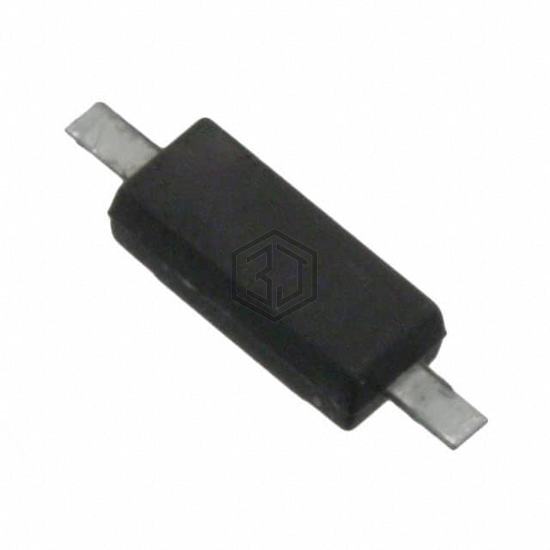

MK24-A-1 is a Magnetic, Reed Switches manufactured by Standex-Meder Electronics. SWITCH REED SPST-NO 100MA 30V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, termination style Axial, Flat, power - rated 1W.
In Stock: 3,907
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 22 ~ 55AT |
| Release Range | - |
| Current - Switching | 100mA (AC/DC) |
| Voltage - Switching AC | 30 V |
| Voltage - Switching DC | 30 V |
| Power - Rated | 1W |
| Operate Time | 0.25 ms |
| Release Time | 0.15 ms |
| Mounting Type | Surface Mount |
| Termination Style | Axial, Flat |
| Length - Overall | 0.303" (7.70mm) |
| Size - Body | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) |
| Height Above Board | - |
| Operating Temperature | -40°C ~ 130°C |
| Capacitance | 0.1 pF |
| Current - Carry | 300mA (AC/DC) |
Submit your RFQ for MK24-A-1 and get a quote within 24 hours.
