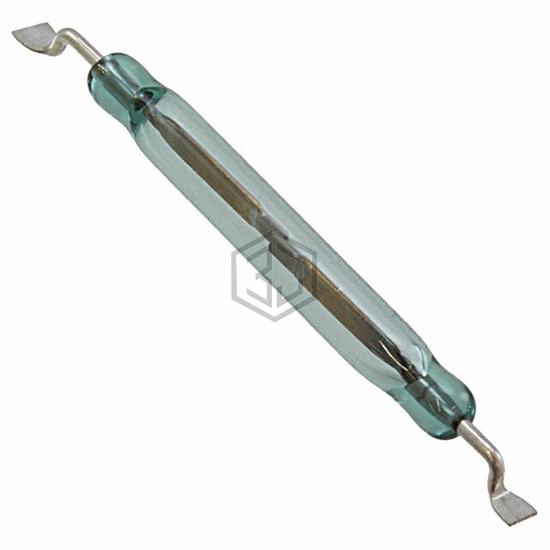

SWITCH REED SPST-NO 1A 1000V
MK23-85-D-2 is a Magnetic, Reed Switches manufactured by Standex-Meder Electronics. SWITCH REED SPST-NO 1A 1000V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, termination style Gull Wing, power - rated 100W.
In Stock: 2,316
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Glass Body Reed |
| Circuit | SPST-NO |
| Operate Range | 20 ~ 25AT |
| Release Range | - |
| Current - Switching | 1A (AC/DC) |
| Voltage - Switching AC | 1000 V |
| Voltage - Switching DC | 1000 V |
| Power - Rated | 100W |
| Operate Time | 1.1 ms |
| Release Time | 0.1 ms |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Length - Overall | 1.154" (29.30mm) |
| Size - Body | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) |
| Height Above Board | 0.112" (2.85mm) |
| Operating Temperature | -40°C ~ 130°C |
| Capacitance | 0.5 pF |
| Current - Carry | 2.5A (AC/DC) |
Submit your RFQ for MK23-85-D-2 and get a quote within 24 hours.
