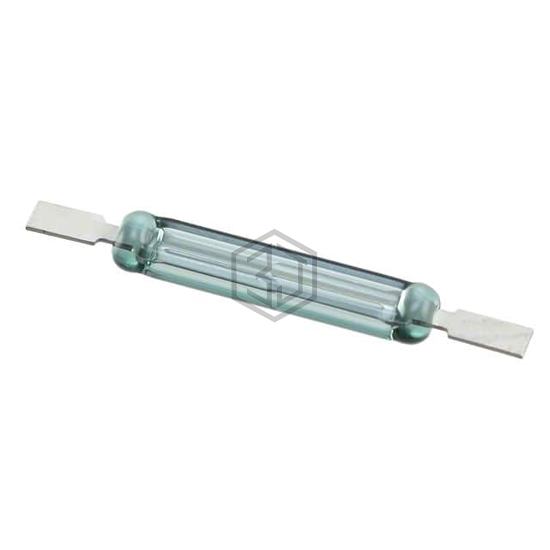

SWITCH REED SPST-NO 1A 200V
MK23-35-A-1 is a Magnetic, Reed Switches manufactured by Standex-Meder Electronics. SWITCH REED SPST-NO 1A 200V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, termination style Axial, Flat, power - rated 15W.
In Stock: 3,321
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Glass Body Reed |
| Circuit | SPST-NO |
| Operate Range | 5 ~ 10AT |
| Release Range | - |
| Current - Switching | 1A (AC/DC) |
| Voltage - Switching AC | 200 V |
| Voltage - Switching DC | 200 V |
| Power - Rated | 15W |
| Operate Time | 0.5 ms |
| Release Time | 0.1 ms |
| Mounting Type | Surface Mount |
| Termination Style | Axial, Flat |
| Length - Overall | 0.614" (15.60mm) |
| Size - Body | 0.087" Dia x 0.413" L (2.20mm x 10.50mm) |
| Height Above Board | - |
| Operating Temperature | -40°C ~ 130°C |
| Capacitance | 0.3 pF |
| Current - Carry | 1.25A (AC/DC) |
Submit your RFQ for MK23-35-A-1 and get a quote within 24 hours.
