SWITCH REED SPST-NO 1A 200V

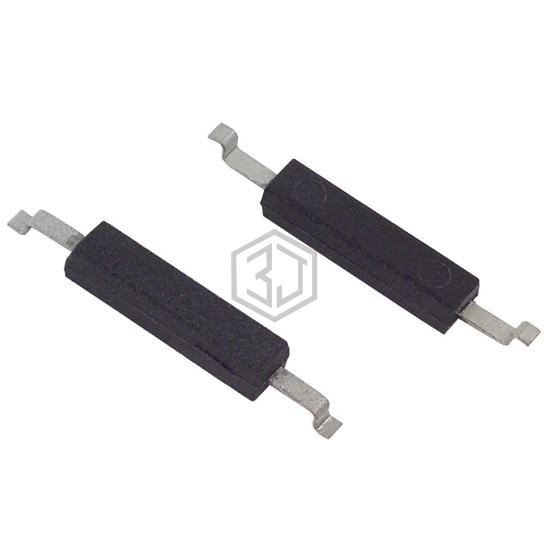

MK22-B-4 is a Magnetic, Reed Switches manufactured by Standex-Meder Electronics. SWITCH REED SPST-NO 1A 200V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, termination style Gull Wing, power - rated 20W.
In Stock: 3,640
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 10 ~ 15AT |
| Release Range | - |
| Current - Switching | 1A (AC/DC) |
| Voltage - Switching AC | 200 V |
| Voltage - Switching DC | 200 V |
| Power - Rated | 20W |
| Operate Time | 0.5 ms |
| Release Time | 0.1 ms |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Length - Overall | 0.768" (19.50mm) |
| Size - Body | 0.457" L x 0.116" W x 0.091" H (11.60mm x 2.95mm x 2.30mm) |
| Height Above Board | 0.094" (2.40mm) |
| Operating Temperature | -40°C ~ 130°C |
| Capacitance | 0.3 pF |
| Current - Carry | 1.25A (AC/DC) |
Submit your RFQ for MK22-B-4 and get a quote within 24 hours.
