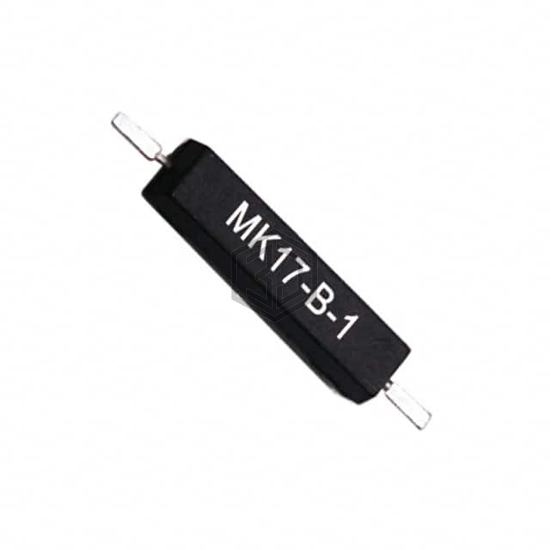

SWITCH REED SPST-NO 500MA 170V
MK17-B-1 is a Magnetic, Reed Switches manufactured by Standex-Meder Electronics. SWITCH REED SPST-NO 500MA 170V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, termination style Axial, Flat, power - rated 10W.
In Stock: 3,011
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 10 ~ 15AT |
| Release Range | - |
| Current - Switching | 500mA (AC/DC) |
| Voltage - Switching AC | 170 V |
| Voltage - Switching DC | 170 V |
| Power - Rated | 10W |
| Operate Time | 0.6 ms |
| Release Time | 0.05 ms |
| Mounting Type | Surface Mount |
| Termination Style | Axial, Flat |
| Length - Overall | 0.492" (12.50mm) |
| Size - Body | 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm) |
| Height Above Board | - |
| Operating Temperature | -40°C ~ 130°C |
| Capacitance | 0.4 pF |
| Current - Carry | 500mA (AC/DC) |
