SWITCH REED SPST-NO 400MA 200V

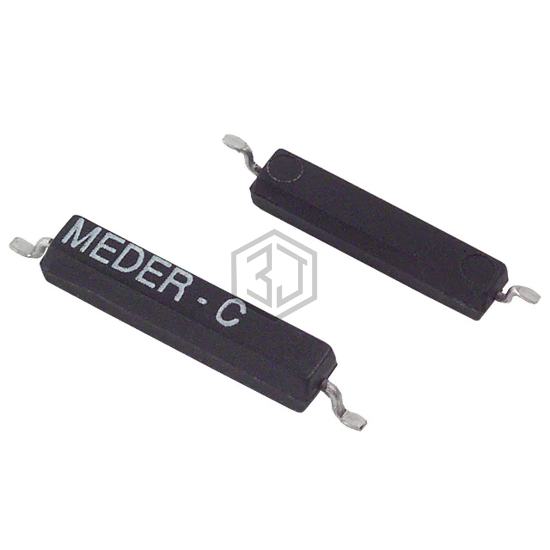

MK16-C-2 is a Magnetic, Reed Switches manufactured by Standex-Meder Electronics. SWITCH REED SPST-NO 400MA 200V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, termination style Gull Wing, power - rated 10W.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 15 ~ 20AT |
| Release Range | - |
| Current - Switching | 400mA (AC/DC) |
| Voltage - Switching AC | 200 V |
| Voltage - Switching DC | 200 V |
| Power - Rated | 10W |
| Operate Time | 0.6 ms |
| Release Time | 0.05 ms |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Length - Overall | 0.614" (15.60mm) |
| Size - Body | 0.457" L x 0.091" W x 0.091" H (11.60mm x 2.30mm x 2.30mm) |
| Height Above Board | 0.094" (2.40mm) |
| Operating Temperature | -40°C ~ 130°C |
| Capacitance | 0.2 pF |
| Current - Carry | 500mA (AC/DC) |
Submit your RFQ for MK16-C-2 and get a quote within 24 hours.
