SWITCH REED LATCHING 500MA 200V

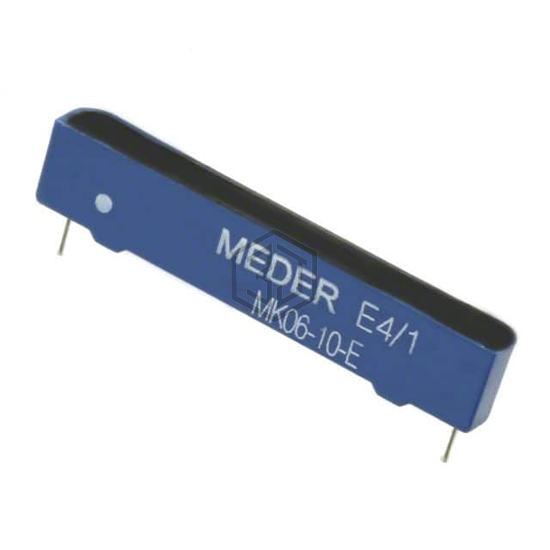

MK06-10-E is a Magnetic, Reed Switches manufactured by Standex-Meder Electronics. SWITCH REED LATCHING 500MA 200V. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, termination style PC Pin, power - rated 10W.
In Stock: 6,278
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded Body Reed |
| Circuit | SPST-NO, Latching |
| Operate Range | 4 ~ 12mm |
| Release Range | - |
| Current - Switching | 500mA (AC/DC) |
| Voltage - Switching AC | 200 V |
| Voltage - Switching DC | 200 V |
| Power - Rated | 10W |
| Operate Time | 0.7 ms |
| Release Time | 0.05 ms |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Length - Overall | 1.125" (28.58mm) |
| Size - Body | 1.125" L x 0.150" W x 0.225" H (28.58mm x 3.81mm x 5.72mm) |
| Height Above Board | 0.225" (5.72mm) |
| Operating Temperature | -20°C ~ 85°C |
| Capacitance | 0.3 pF |
| Current - Carry | 1A (AC/DC) |
Submit your RFQ for MK06-10-E and get a quote within 24 hours.
