SWITCH REED SPST-NO 500MA 170V

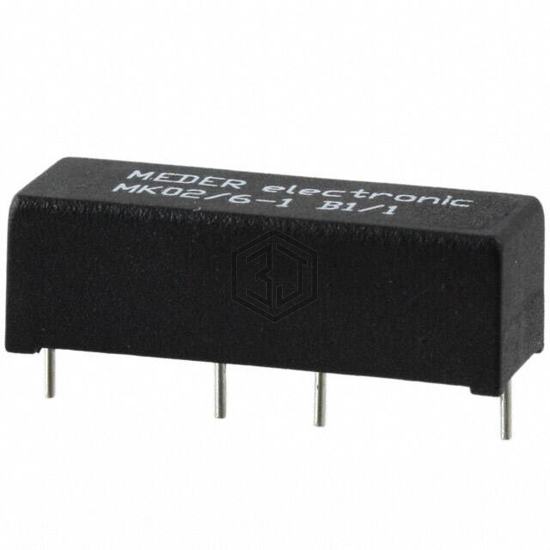

MK02/6-1 is a Magnetic, Reed Switches manufactured by Standex-Meder Electronics. SWITCH REED SPST-NO 500MA 170V. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C, termination style PC Pin, power - rated 10W.
In Stock: 1,175
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 3.5 ~ 5.5mm |
| Release Range | 3.7 ~ 7mm |
| Current - Switching | 500mA (AC/DC) |
| Voltage - Switching AC | 170 V |
| Voltage - Switching DC | 170 V |
| Power - Rated | 10W |
| Operate Time | 0.6 ms |
| Release Time | 0.05 ms |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Length - Overall | 0.945" (24.00mm) |
| Size - Body | 0.945" L x 0.350" W x 0.303" H (24.00mm x 8.90mm x 7.70mm) |
| Height Above Board | 0.303" (7.70mm) |
| Operating Temperature | -20°C ~ 80°C |
| Capacitance | 0.4 pF |
| Current - Carry | 500mA (AC/DC) |
Submit your RFQ for MK02/6-1 and get a quote within 24 hours.
