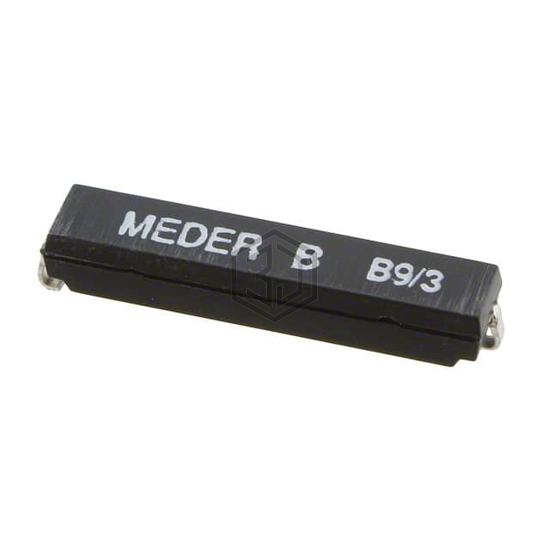

SWITCH REED SPST-NO 500MA 180V
MK01-B is a Magnetic, Reed Switches manufactured by Standex-Meder Electronics. SWITCH REED SPST-NO 500MA 180V. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 130°C, termination style J Lead, power - rated 10W.
In Stock: 4,604
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 15 ~ 60AT |
| Release Range | - |
| Current - Switching | 500mA (AC/DC) |
| Voltage - Switching AC | 180 V |
| Voltage - Switching DC | 180 V |
| Power - Rated | 10W |
| Operate Time | 0.5 ms |
| Release Time | 0.05 ms |
| Mounting Type | Surface Mount |
| Termination Style | J Lead |
| Length - Overall | 0.740" (18.80mm) |
| Size - Body | 0.709" L x 0.146" W x 0.134" H (18.00mm x 3.70mm x 3.40mm) |
| Height Above Board | 0.134" (3.40mm) |
| Operating Temperature | -20°C ~ 130°C |
| Capacitance | 0.3 pF |
| Current - Carry | 1A (AC/DC) |
Submit your RFQ for MK01-B and get a quote within 24 hours.
