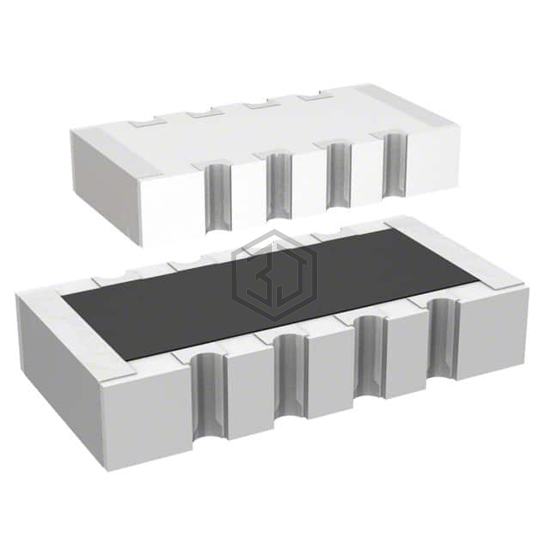

RES ARRAY 8 RES 560 OHM 1206
RAVF328RJT560R is a Resistor Networks, Arrays manufactured by Stackpole Electronics Inc. RES ARRAY 8 RES 560 OHM 1206. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1206 (3216 Metric), Convex, Long Side Terminals, size / dimension 0.126" L x 0.063" W (3.20mm x 1.60mm).
In Stock: 3,274
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Bussed |
| Resistance (Ohms) | 560 |
| Tolerance | ±5% |
| Number of Resistors | 8 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 10 |
| Power Per Element | 62.5mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Convex, Long Side Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EXB-A10P561J | Panasonic Electronic Components | RES ARRAY 8 RES 560 OHM 2512 | 100% | View |
| YC158TJR-07560RL | YAGEO | RES ARRAY 8 RES 560 OHM 1206 | 100% | View |
| 766141561GPTR13 | CTS Resistor Products | RES ARRAY 13 RES 560 OHM 14SOIC | 81% | View |
| 4816P-T02-561LF | Bourns Inc. | RES ARRAY 15 RES 560 OHM 16SOIC | 79% | View |
| 4816P-T02-561 | Bourns Inc. | RES ARRAY 15 RES 560 OHM 16SOIC | 79% | View |
| 4820P-T02-561 | Bourns Inc. | RES ARRAY 19 RES 560 OHM 20SOIC | 74% | View |
