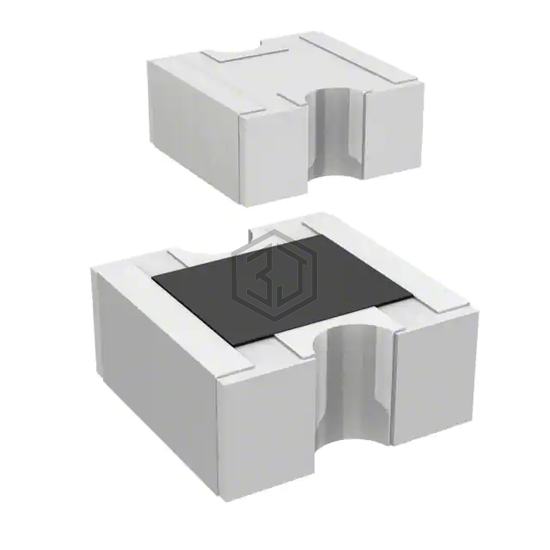

RES ARRAY 2 RES 22 OHM 0404
RAVF102DJT22R0 is a Resistor Networks, Arrays manufactured by Stackpole Electronics Inc. RES ARRAY 2 RES 22 OHM 0404. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case 0404 (1010 Metric), Convex, size / dimension 0.039" L x 0.039" W (1.00mm x 1.00mm).
In Stock: 17,099
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 22 |
| Tolerance | ±5% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 4 |
| Power Per Element | 62.5mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Applications | Automotive AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 0404 (1010 Metric), Convex |
| Supplier Device Package | - |
| Size / Dimension | 0.039" L x 0.039" W (1.00mm x 1.00mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
Submit your RFQ for RAVF102DJT22R0 and get a quote within 24 hours.
