RES 5K OHM 5% 1/3W 1206

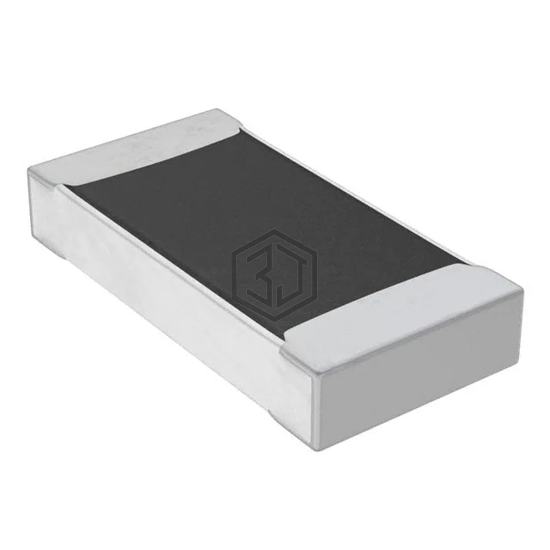

HVCB1206JTD5K00 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES 5K OHM 5% 1/3W 1206. Key specifications: operating temperature -55°C ~ 150°C, package / case 1206 (3216 Metric), size / dimension 0.126" L x 0.063" W (3.20mm x 1.60mm), power (watts) 0.333W, 1/3W.
In Stock: 6,536
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 5 kOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.333W, 1/3W |
| Composition | Thick Film |
| Features | High Voltage, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | - |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.030" (0.75mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CR085001F | Meritek | RES SMD 5K OHM 1% 1/4W 1206 | 85% | View |
| CR025001F | Meritek | RES SMD 5K OHM 1% 3/4W 2010 | 64% | View |
| MC102825001JE | Ohmite | RES SMD 5K OHM 5% 1.5W 5025 | 64% | View |
| CR105001F | Meritek | RES SMD 5K OHM 1% 1/8W 0805 | 64% | View |
| CR255001F | Meritek | RES SMD 5K OHM 1% 1/20W 0201 | 64% | View |
| CR205001F | Meritek | RES SMD 5K OHM 1% 1/16W 0402 | 64% | View |
Submit your RFQ for HVCB1206JTD5K00 and get a quote within 24 hours.
