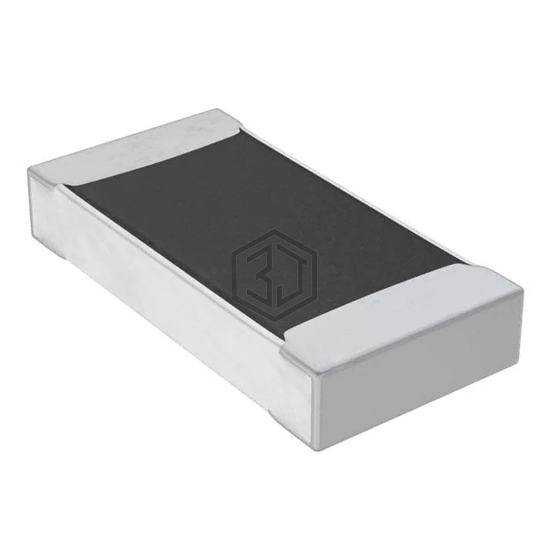

RES HV 1206 5 MOHM 0.1% 25PPM
HVCB1206BDE5M00 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES HV 1206 5 MOHM 0.1% 25PPM. Key specifications: operating temperature -55°C ~ 150°C, package / case 1206 (3216 Metric), size / dimension 0.126" L x 0.063" W (3.20mm x 1.60mm), power (watts) 0.333W, 1/3W.
In Stock: 6,604
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 5 MOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.333W, 1/3W |
| Composition | Thick Film |
| Features | High Voltage, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | - |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.030" (0.76mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HVCB1206DTC5M00 | Stackpole Electronics Inc | RES 5M OHM 0.5% 1/3W 1206 | 100% | View |
| RVC1206FK5M00 | Stackpole Electronics Inc | RES 5M OHM 1% 1/4W 1206 | 87% | View |
| CSR1225FT5L00 | Stackpole Electronics Inc | RES 0.005 OHM 1% 3W 2512 WIDE | 69% | View |
| 73WE4R005J | CTS Resistor Products | RES 0.005 OHM 5% 3/4W 1206 WIDE | 69% | View |
| RJ1632FR005CS | Samsung Electro-Mechanics | RES 0.005 OHM 1% 1W 1206 WIDE | 66% | View |
| MC102825004JE | Ohmite | RES SMD 5M OHM 5% 1.5W 5025 | 64% | View |
Submit your RFQ for HVCB1206BDE5M00 and get a quote within 24 hours.
