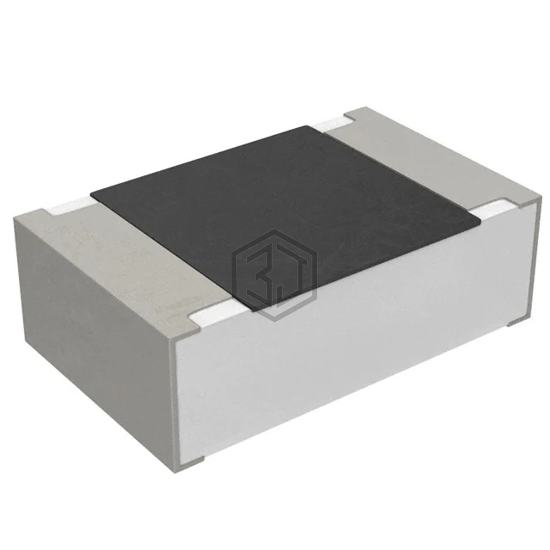

RES HV 0805 5 MOHM 0.1% 50PPM
HVCB0805BDC5M00 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES HV 0805 5 MOHM 0.1% 50PPM. Key specifications: operating temperature -55°C ~ 150°C, package / case 0805 (2012 Metric), size / dimension 0.079" L x 0.050" W (2.01mm x 1.27mm), power (watts) 0.2W, 1/5W.
In Stock: 3,721
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 5 MOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.2W, 1/5W |
| Composition | Thick Film |
| Features | High Voltage, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.050" W (2.01mm x 1.27mm) |
| Height - Seated (Max) | 0.025" (0.64mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
