RES HV 0805 20 MOHM 0.1% 50PPM

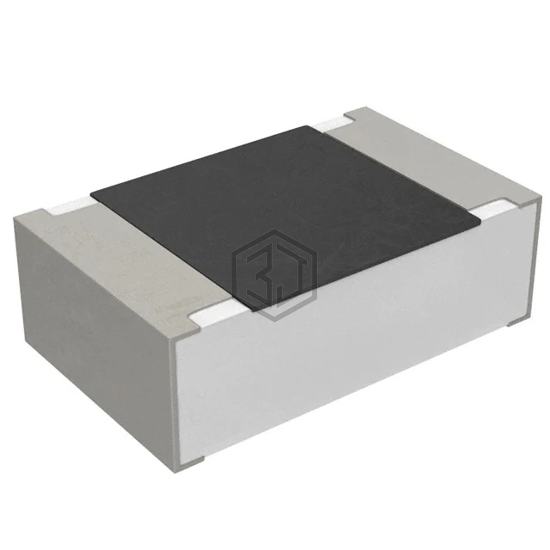

HVCB0805BDC20M0 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES HV 0805 20 MOHM 0.1% 50PPM. Key specifications: operating temperature -55°C ~ 150°C, package / case 0805 (2012 Metric), size / dimension 0.079" L x 0.050" W (2.01mm x 1.27mm), power (watts) 0.2W, 1/5W.
In Stock: 1,577
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 20 MOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.2W, 1/5W |
| Composition | Thick Film |
| Features | High Voltage, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.050" W (2.01mm x 1.27mm) |
| Height - Seated (Max) | 0.025" (0.64mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RC1206JR-0720ML | YAGEO | RES 20M OHM 5% 1/4W 1206 | 86% | View |
| CR101965F | Meritek | RES SMD 19.6M OHM 1% 1/8W 0805 | 74% | View |
| RUK2012JR020CS | Samsung Electro-Mechanics | RES 0.02 OHM 5% 1/2W 0805 | 69% | View |
| ERJ-D2DJR020V | Panasonic Electronic Components | RES 0.020 OHM 1W 1206 WIDE | 67% | View |
| 73WE4R020J | CTS Resistor Products | RES 0.02 OHM 5% 3/4W 1206 WIDE | 65% | View |
| CR021965F | Meritek | RES SMD 19.6M OHM 1% 3/4W 2010 | 62% | View |
Submit your RFQ for HVCB0805BDC20M0 and get a quote within 24 hours.
