RES 8.2 OHM 5% 5W 5048 WIDE

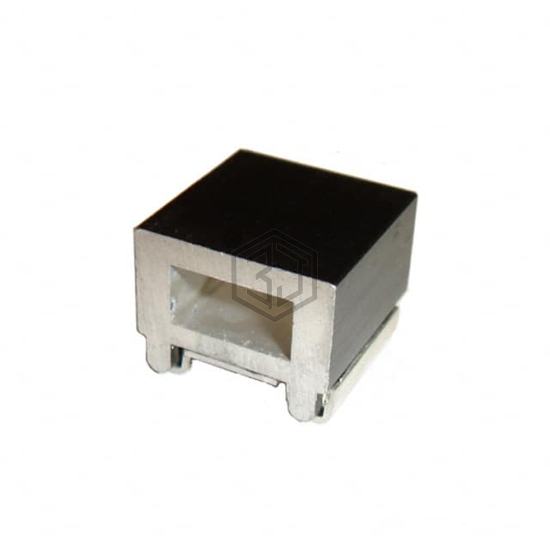

HPC12JB8R20 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES 8.2 OHM 5% 5W 5048 WIDE. Key specifications: operating temperature -55°C ~ 155°C, package / case Wide 5048 (127122 Metric) 4850 J-Lead, size / dimension 0.480" L x 0.500" W (12.19mm x 12.70mm), power (watts) 5W.
In Stock: 9,109
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Resistance | 8.2 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 5W |
| Composition | Thick Film |
| Features | Non-Inductive, Pulse Withstanding |
| Temperature Coefficient | ±150ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 5048 (127122 Metric) 4850 J-Lead |
| Supplier Device Package | SMD |
| Ratings | - |
| Size / Dimension | 0.480" L x 0.500" W (12.19mm x 12.70mm) |
| Height - Seated (Max) | 0.400" (10.16mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
HPC12JB8R20 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RCS08058R20FKEA | Vishay Dale | RES SMD 8.2 OHM 1% 1/2W 0805 | 64% | View |
| WK73S3ATTE8R2J | KOA Speer Electronics, Inc. | RES 8.2 OHM 5% 1.5W 2512 | 64% | View |
| SR731JRTTD8R2G | KOA Speer Electronics, Inc. | RES 8.2 OHM 2% 1/5W 0603 | 64% | View |
| RPC208R2JTP | Kamaya Inc. | RES 8.2 OHM 1/4W 5% 0805 | 64% | View |
| ERJ-S1TJ8R2U | Panasonic Electronic Components | RES 8.2 OHM 5% 1W 2512 SMD | 64% | View |
| ERJ-12RQJ8R2U | Panasonic Electronic Components | RES SMD 8.2 OHM 5% 1/2W 1812 | 64% | View |
