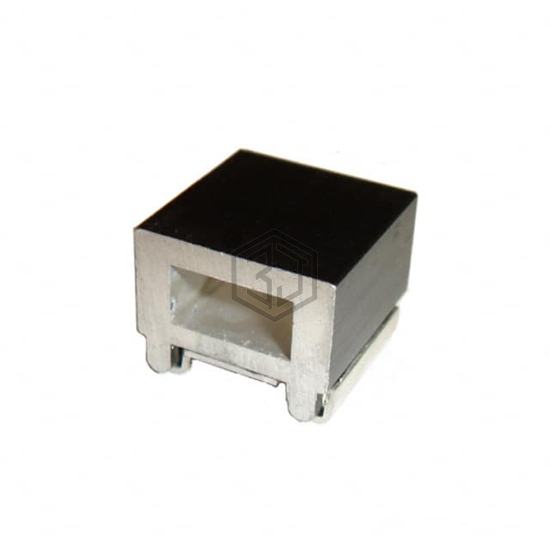

RES 22 OHM 5% 5W 5048 WIDE
HPC12JB22R0 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES 22 OHM 5% 5W 5048 WIDE. Key specifications: operating temperature -55°C ~ 155°C, package / case Wide 5048 (127122 Metric) 4850 J-Lead, size / dimension 0.480" L x 0.500" W (12.19mm x 12.70mm), power (watts) 5W.
In Stock: 2,454
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Resistance | 22 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 5W |
| Composition | Thick Film |
| Features | Non-Inductive, Pulse Withstanding |
| Temperature Coefficient | ±150ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 5048 (127122 Metric) 4850 J-Lead |
| Supplier Device Package | SMD |
| Ratings | - |
| Size / Dimension | 0.480" L x 0.500" W (12.19mm x 12.70mm) |
| Height - Seated (Max) | 0.400" (10.16mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
HPC12JB22R0 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AC1210FR-0722RL | YAGEO | RES SMD 22 OHM 1% 1/2W 1210 | 64% | View |
| ERJ-P03J220V | Panasonic Electronic Components | RES SMD 22 OHM 5% 1/5W 0603 | 64% | View |
| RK73G1JTTD22R0D | KOA Speer Electronics, Inc. | RES 22 OHM 0.5% 1/10W 0603 | 64% | View |
| WK73R2ATTD220J | KOA Speer Electronics, Inc. | RES 22 OHM 5% 1W 0805 | 64% | View |
| RK73B2BTTD220J | KOA Speer Electronics, Inc. | RES 22 OHM 5% 1/4W 1206 | 64% | View |
| RMCS0402FT22R0 | Stackpole Electronics Inc | RES, AS, 0402, 22 OHM, 1%, 0.062 | 64% | View |
Submit your RFQ for HPC12JB22R0 and get a quote within 24 hours.
