RES SHUNT, 2818, 0.02 OHM, 5%, 5

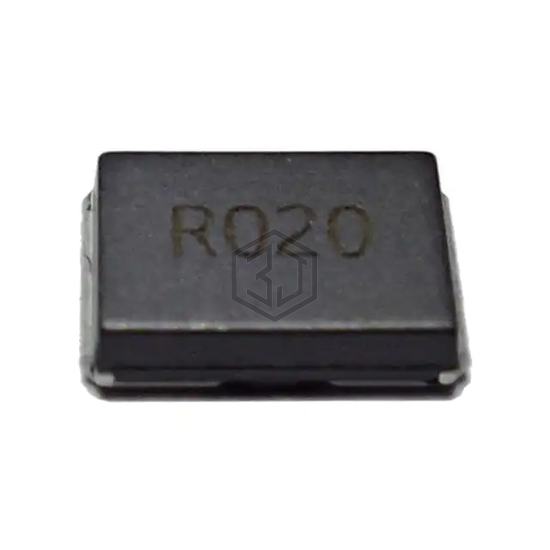

HCSM2818JT20L0 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES SHUNT, 2818, 0.02 OHM, 5%, 5. Key specifications: operating temperature -55°C ~ 170°C, package / case Nonstandard, size / dimension 0.281" L x 0.195" W (7.15mm x 4.95mm), ratings AEC-Q200.
In Stock: 2,928
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 20 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 5W |
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | Nonstandard |
| Supplier Device Package | 2818 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.281" L x 0.195" W (7.15mm x 4.95mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| WSR3R0200DEA | Vishay Dale | RES 0.02 OHM 0.5% 3W 4527 | 73% | View |
| WSL2816R0200FEK | Vishay Dale | RES 0.02 OHM 1% 2W 2816 | 69% | View |
| WSL2816R0200FTH | Vishay Dale | RES 0.02 OHM 1% 2W 2816 | 69% | View |
| WSL2816R0200JEH | Vishay Dale | RES 0.02 OHM 5% 2W 2816 | 69% | View |
| WSL2512R0200FEB | Vishay Dale | RES 0.02 OHM 1% 1W 2512 | 68% | View |
| WSLT2512R0200DEK | Vishay Dale | RES 0.02 OHM 0.5% 1W 2512 | 68% | View |
Submit your RFQ for HCSM2818JT20L0 and get a quote within 24 hours.
