RES SHUNT, 0402, 0.02 OHM, 1%, 0

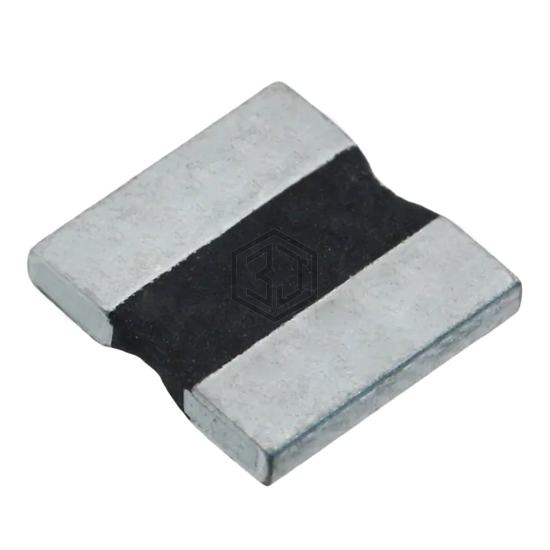

CSS0402FT20L0 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES SHUNT, 0402, 0.02 OHM, 1%, 0. Key specifications: operating temperature -55°C ~ 155°C, package / case 0402 (1005 Metric), size / dimension 0.039" L x 0.022" W (1.00mm x 0.55mm), ratings AEC-Q200.
In Stock: 7,812
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 20 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.333W, 1/3W |
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Height - Seated (Max) | 0.016" (0.40mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LVT06R0200FER | Ohmite | RES 0.02 OHM 1% 1/3W 0603 | 96% | View |
| WSL1206R0200JBA | Vishay Dale | RES 0.02 OHM 5% 1/4W 1206 | 77% | View |
| WSL1206R0200FEB | Vishay Dale | RES 0.02 OHM 1% 1/4W 1206 | 77% | View |
| WSLP0805R0200FEK | Vishay Dale | RES 0.02 OHM 1% 1/2W 0805 | 75% | View |
| WSL1206R0200FEA18 | Vishay Dale | RES 0.02 OHM 1% 1/2W 1206 | 71% | View |
| WSL0805R0200DTB | Vishay Dale | RES 0.02 OHM 0.5% 1/8W 0805 | 63% | View |
Submit your RFQ for CSS0402FT20L0 and get a quote within 24 hours.
