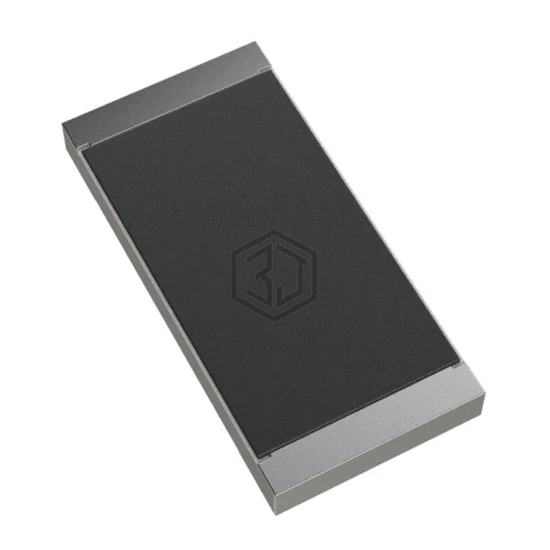

RES CS, 0805, 0.01 OHM, 5%, 1W
CSRF0805JT10L0-HP is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES CS, 0805, 0.01 OHM, 5%, 1W. Key specifications: operating temperature -55°C ~ 170°C, package / case 0805 (2012 Metric), size / dimension 0.083" L x 0.051" W (2.10mm x 1.30mm), power (watts) 0.5W, 1/2W.
In Stock: 4,455
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 10 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Metal Foil |
| Features | Current Sense, Moisture Resistant |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.083" L x 0.051" W (2.10mm x 1.30mm) |
| Height - Seated (Max) | 0.033" (0.85mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| WFCP0603R0100FE66 | Vishay Dale | RES 0.01 OHM .5 W 1% 0603 SMD | 97% | View |
| PE2010DKF070R01L | YAGEO | RES 0.01 OHM 0.5% 1/2W 2010 | 91% | View |
| PE0603JRF470R01L | YAGEO | RES 0.01 OHM 5% 0.4W 0603 | 87% | View |
| PE0603DRF470R01L | YAGEO | RES 0.01 OHM 0.5% 0.4W 0603 | 87% | View |
| PE0805DRF7T0R01L | YAGEO | RES 0.01 OHM 0.5% 1/3W 0805 | 82% | View |
| PE0805FRM070R01L | YAGEO | RES 0.01 OHM 1% 1/8W 0805 | 69% | View |
Submit your RFQ for CSRF0805JT10L0-HP and get a quote within 24 hours.
