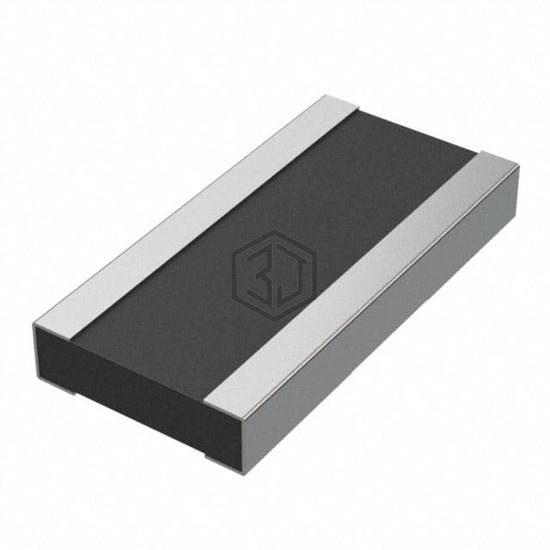

RES 5.6 OHM 5% 3W 2512 WIDE
CSR1225JT5R60 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES 5.6 OHM 5% 3W 2512 WIDE. Key specifications: operating temperature -55°C ~ 155°C, package / case Wide 2512 (6432 Metric), 1225, size / dimension 0.122" L x 0.248" W (3.10mm x 6.30mm), power (watts) 3W.
In Stock: 7,749
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 5.6 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 3W |
| Composition | Thick Film |
| Features | Current Sense |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Supplier Device Package | 1225 |
| Ratings | - |
| Size / Dimension | 0.122" L x 0.248" W (3.10mm x 6.30mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SG73P2ETTD5R60F | KOA Speer Electronics, Inc. | RES 5.6 OHM 1% 1/2W 1210 | 69% | View |
| SR0805FR-075R6L | YAGEO | RES 5.6 OHM 1% 1/8W 0805 | 65% | View |
| CR015R60F | Meritek | RES SMD 5.6 OHM 1% 1W 2512 | 64% | View |
| 35605R6JT | TE Connectivity Passive Product | RES 3560 5R6 5% | 64% | View |
| CR0603-J/-5R6ELF | Bourns Inc. | RES SMD 5.6 OHM 5% 1/10W 0603 | 62% | View |
| RCS1608J5R6CS | Samsung Electro-Mechanics | RES 5.6 OHM 5% 1/10W 0603 | 62% | View |
Submit your RFQ for CSR1225JT5R60 and get a quote within 24 hours.
