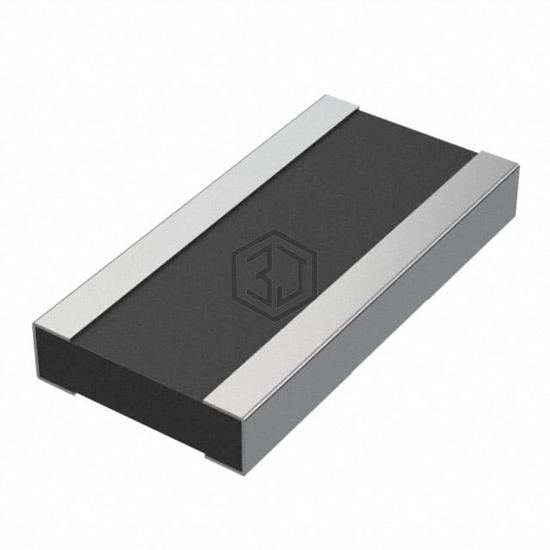

RES 0.18 OHM 5% 3W 2512 WIDE
CSR1225JKR180 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES 0.18 OHM 5% 3W 2512 WIDE. Key specifications: operating temperature -55°C ~ 155°C, package / case Wide 2512 (6432 Metric), 1225, size / dimension 0.122" L x 0.248" W (3.10mm x 6.30mm), power (watts) 3W.
In Stock: 4,084
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 180 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 3W |
| Composition | Thick Film |
| Features | Current Sense |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Supplier Device Package | 1225 |
| Ratings | - |
| Size / Dimension | 0.122" L x 0.248" W (3.10mm x 6.30mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CSRN2512JKR180 | Stackpole Electronics Inc | RES 0.18 OHM 5% 2W 2512 | 75% | View |
| PT1206JR-070R18L | YAGEO | RES 0.18 OHM 5% 1/4W 1206 | 69% | View |
| CSR1206JTR180 | Stackpole Electronics Inc | RES 0.18 OHM 5% 1/2W 1206 | 69% | View |
| PT1206FR-7W0R18L | YAGEO | RES 0.18 OHM 1% 1/2W 1206 | 69% | View |
| 73WL6R180F | CTS Resistor Products | RES 0.18 OHM 1% 1W 2010 WIDE | 65% | View |
| PFC10-0R18F1 | Riedon | RES 0.18 OHM 1% 25W PFC10 | 64% | View |
Submit your RFQ for CSR1225JKR180 and get a quote within 24 hours.
