RES 0.036 OHM 5% 3W 2512 WIDE

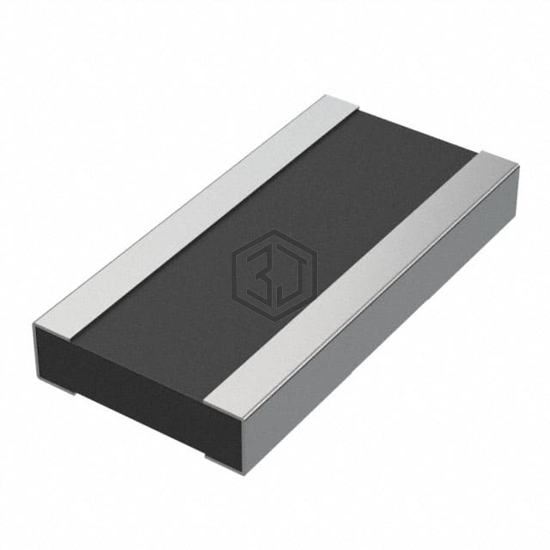

CSR1225JK36L0 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES 0.036 OHM 5% 3W 2512 WIDE. Key specifications: operating temperature -55°C ~ 155°C, package / case Wide 2512 (6432 Metric), 1225, size / dimension 0.122" L x 0.248" W (3.10mm x 6.30mm), power (watts) 3W.
In Stock: 9,999
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 36 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 3W |
| Composition | Thick Film |
| Features | Current Sense |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Supplier Device Package | 1225 |
| Ratings | - |
| Size / Dimension | 0.122" L x 0.248" W (3.10mm x 6.30mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RLP73M3AR036FTDF | TE Connectivity Passive Product | RES 0.036 OHM 1% 2W 2512 | 75% | View |
| RL1206FR-070R036L | YAGEO | RES 0.036 OHM 1% 1/4W 1206 | 69% | View |
| CSR1206JK36L0 | Stackpole Electronics Inc | RES 0.036 OHM 5% 1/2W 1206 | 69% | View |
| CSR1206FT36L0 | Stackpole Electronics Inc | RES 0.036 OHM 1% 1/2W 1206 | 69% | View |
| RL0805FR-070R036L | YAGEO | RES 0.036 OHM 1% 1/8W 0805 | 65% | View |
| RS-05FP7-0R036 | Viking Tech | RES 36M OHM 1% 1/4W 0805 | 65% | View |
Submit your RFQ for CSR1225JK36L0 and get a quote within 24 hours.
