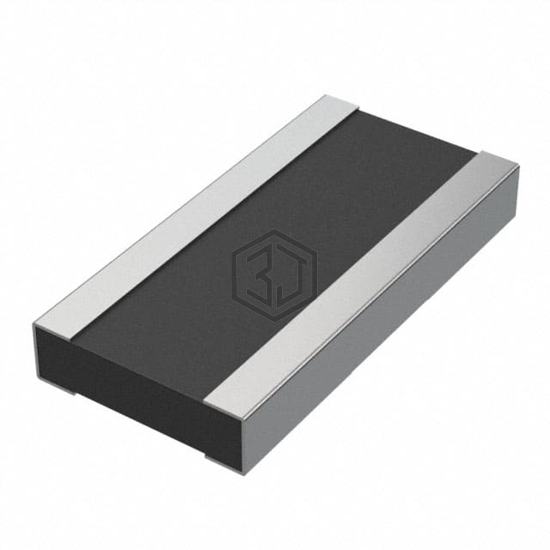

RES 0.056 OHM 1% 3W 2512 WIDE
CSR1225FK56L0 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES 0.056 OHM 1% 3W 2512 WIDE. Key specifications: operating temperature -55°C ~ 155°C, package / case Wide 2512 (6432 Metric), 1225, size / dimension 0.122" L x 0.248" W (3.10mm x 6.30mm), power (watts) 3W.
In Stock: 3,603
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 56 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 3W |
| Composition | Thick Film |
| Features | Current Sense |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Supplier Device Package | 1225 |
| Ratings | - |
| Size / Dimension | 0.122" L x 0.248" W (3.10mm x 6.30mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ERJ-B1CJR056U | Panasonic Electronic Components | RES 0.056 OHM 2W 2010 WIDE | 80% | View |
| RCWE102056L0JKEA | Vishay Dale | RES 0.056 OHM 2W 2010 WIDE | 80% | View |
| ERJ-D1CJR056U | Panasonic Electronic Components | RES 0.056 OHM 2W 2010 WIDE | 80% | View |
| RVC1206JT56M0 | Stackpole Electronics Inc | RES, HV, 1206, 56 MOHM, 5%, 0.25 | 69% | View |
| CRM1206-FX-R056ELF | Bourns Inc. | RES 1206 R056 1% 500MW TC100 | 69% | View |
| WK73S2HTTE56LJ | KOA Speer Electronics, Inc. | RES 56M OHM 5% 1W 2010 | 67% | View |
