RES SHUNT, 2512, 0.1 OHM, 1%, 3W

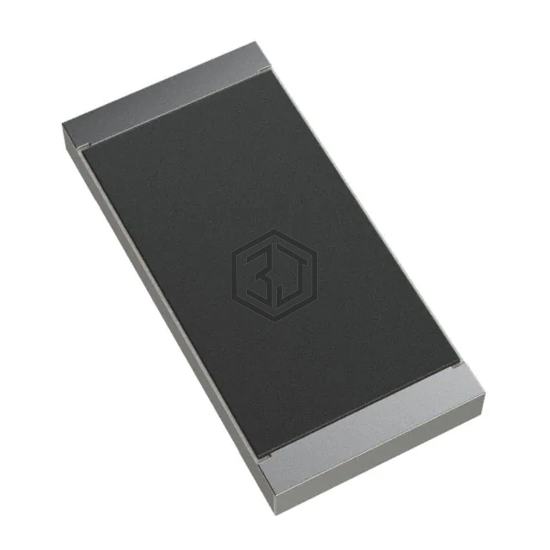

CSM2512FTR100 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES SHUNT, 2512, 0.1 OHM, 1%, 3W. Key specifications: operating temperature -55°C ~ 170°C, package / case 2512 (6432 Metric), size / dimension 0.252" L x 0.126" W (6.40mm x 3.20mm), ratings AEC-Q200.
In Stock: 3,840
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 100 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 3W |
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.252" L x 0.126" W (6.40mm x 3.20mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| WSR3R1000DBA | Vishay Dale | RES 0.1 OHM 0.5% 3W 4527 | 94% | View |
| WSLT2512R1000FEA | Vishay Dale | RES 0.1 OHM 1% 1W 2512 | 69% | View |
| WSL2512R1000FTA | Vishay Dale | RES 0.1 OHM 1% 1W 2512 | 69% | View |
| WSL2010R1000FEA18 | Vishay Dale | RES 0.1 OHM 1% 1W 2010 | 67% | View |
| WSL1206R1000FEA | Vishay Dale | RES 0.1 OHM 1% 1/4W 1206 | 62% | View |
| WSL0805R1000JEA | Vishay Dale | RES 0.1 OHM 5% 1/8W 0805 | 58% | View |
Submit your RFQ for CSM2512FTR100 and get a quote within 24 hours.
