RES SHUNT, 2512, 0.022 OHM, 1%,

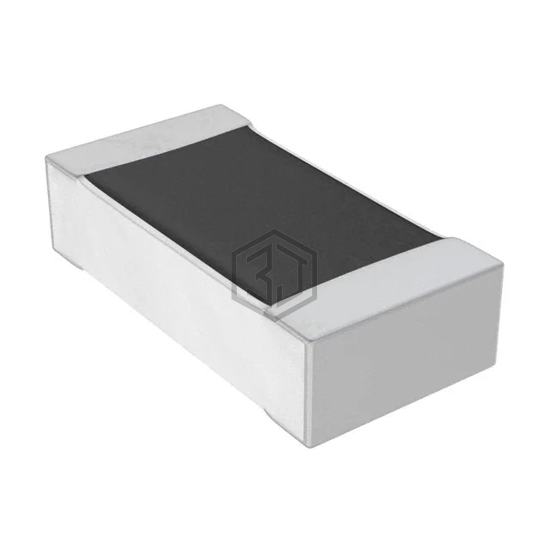

CSM2512FT22L0 is a Chip Resistor - Surface Mount manufactured by Stackpole Electronics Inc. RES SHUNT, 2512, 0.022 OHM, 1%,. Key specifications: operating temperature -55°C ~ 170°C, package / case 2512 (6432 Metric), size / dimension 0.252" L x 0.126" W (6.40mm x 3.20mm), ratings AEC-Q200.
In Stock: 5,184
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 22 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 3W |
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.252" L x 0.126" W (6.40mm x 3.20mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TLRP3A30CR022FTE | TE Connectivity Passive Product | RES 0.022 OHM 1% 3W 2512 | 100% | View |
| WSR3R0220FBA | Vishay Dale | RES 0.022 OHM 1% 3W 4527 | 94% | View |
| CSSH2728FT22L0 | Stackpole Electronics Inc | RES 0.022 OHM 1% 4W 2827 WIDE | 86% | View |
| TLRH3APTTE22L0F | KOA Speer Electronics, Inc. | RES 22M OHM 1% 5W 2512 | 77% | View |
| WSR5R0220FBA | Vishay Dale | RES 0.022 OHM 1% 5W 4527 | 72% | View |
| WSR5R0220DEK | Vishay Dale | RES 0.022 OHM 0.5% 5W 4527 | 72% | View |
Submit your RFQ for CSM2512FT22L0 and get a quote within 24 hours.
