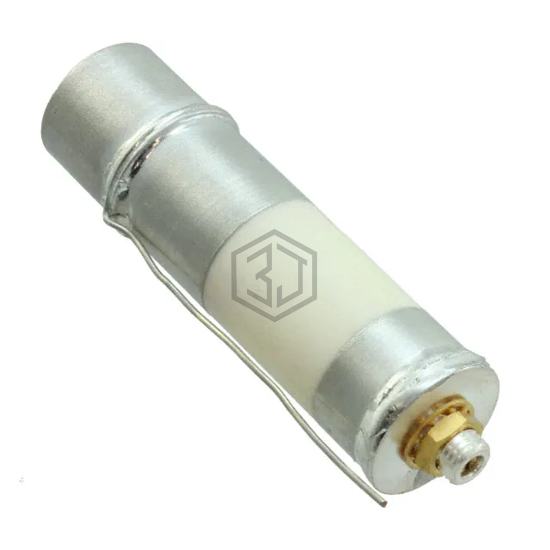

CAP TRIM 5-85PF 6000V CHAS MNT
SGNMNC3806 is a Trimmers, Variable Capacitors manufactured by Sprague-Goodman. CAP TRIM 5-85PF 6000V CHAS MNT. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 125°C, voltage - rated 6000 V, size / dimension 0.710" Dia (18.03mm).
In Stock: 2,425
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance Range | 5 ~ 85pF |
| Adjustment Type | - |
| Voltage - Rated | 6000 V |
| Dielectric Material | Ceramic |
| Q @ Freq | 500 @ 25MHz |
| Size / Dimension | 0.710" Dia (18.03mm) |
| Height - Seated (Max) | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Chassis Mount |
| Features | Non-Magnetic, Sealed |
SGNMNC3806 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SGNMNC2256 | Sprague-Goodman | CAP TRIM 3-25PF 6000V CHAS MNT | 100% | View |
| SGNMNC3106 | Sprague-Goodman | CAP TRIM 2-10PF 6000V CHAS MNT | 100% | View |
| SGNMNC1206EK | Sprague-Goodman | CAP TRIM 2-20PF 6000V CHAS MNT | 100% | View |
| SGNMNC2236EK | Sprague-Goodman | CAP TRIM 2-23PF 6000V CHAS MNT | 100% | View |
| SGNMNC2306EK | Sprague-Goodman | CAP TRIM 3-30PF 6000V CHAS MNT | 100% | View |
| SGNMNC1106E | Sprague-Goodman | CAP TRIM 1-10PF 6000V CHAS MNT | 100% | View |
Submit your RFQ for SGNMNC3806 and get a quote within 24 hours.
